La machine à rouler mécanique symétrique à 3 roules a 3 rouleaux disposés symétriquement et le rouleau supérieur est situé au centre de deux rouleaux inférieurs.
État de disponibilité: | |
---|---|
Quantité: | |
The mechanical symmetrical 3-roll rolling machine has 3 symmetrically arranged rolls and the upper roll is located at center of two lower rolls. A worm and gear drive and a screw rod and screw auxiliary drive are used to drive rolls to move vertically. The gear on main speed reducer is used to mesh the gears of both lower rolls for rotation so as to provide torque for rolling plate. Metal plate is located among three working rolls (two lower rolls and one upper roll) and subsequently continuously bent under pressure of upper roll and rotation of lower rolls to generate permanent plastic deformation on plate so as to roll the plate to required shape such as cylinder, taper cylinder or arc. The disadvantage of mechanical symmetrical 3-roll rolling machine is the end of plate can not be bent preliminarily.

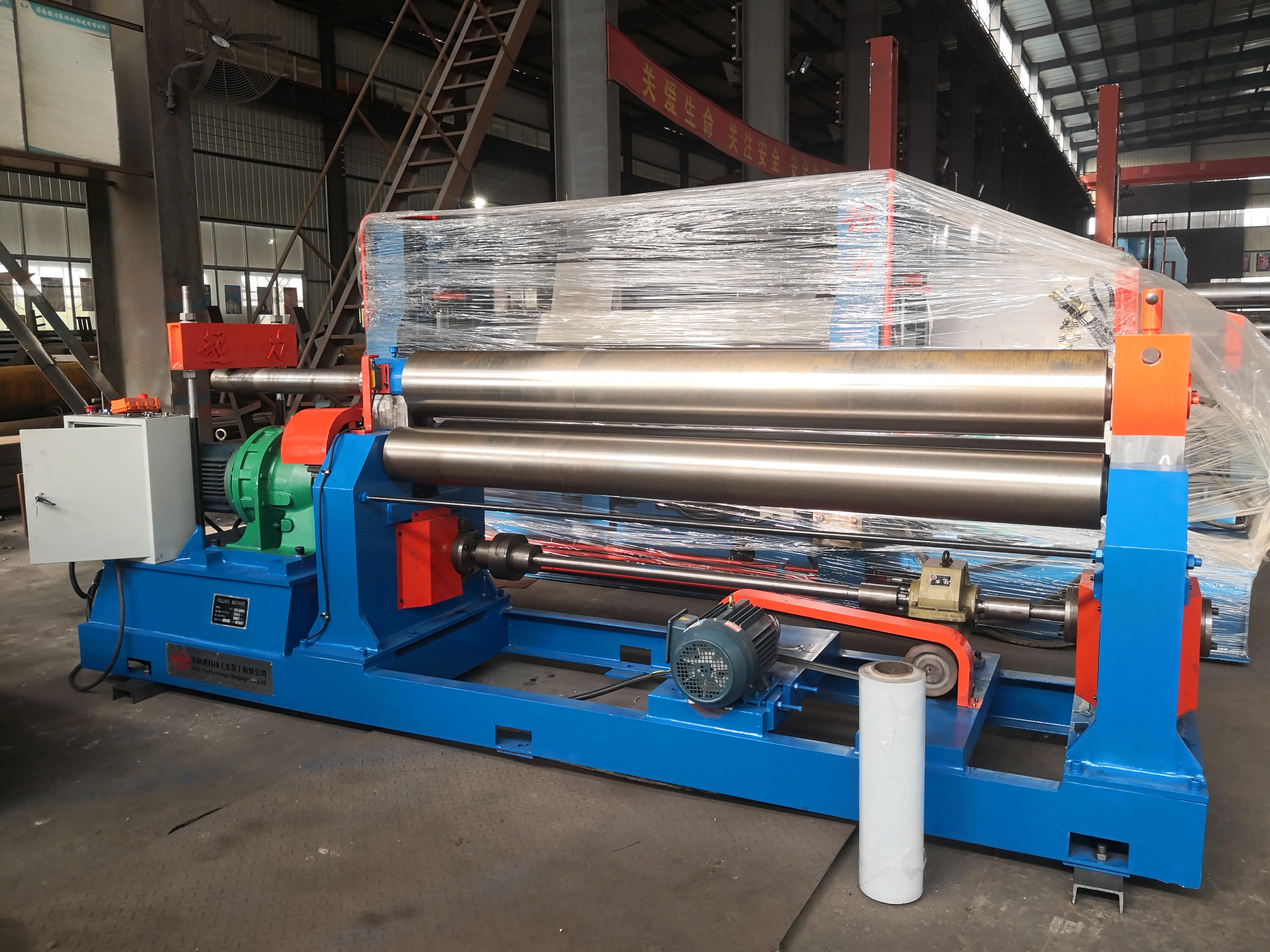

Here are photos from CHAOLI professional China rolling machine factory.
The mechanical symmetrical 3-roll rolling machine has 3 symmetrically arranged rolls and the upper roll is located at center of two lower rolls. A worm and gear drive and a screw rod and screw auxiliary drive are used to drive rolls to move vertically. The gear on main speed reducer is used to mesh the gears of both lower rolls for rotation so as to provide torque for rolling plate. Metal plate is located among three working rolls (two lower rolls and one upper roll) and subsequently continuously bent under pressure of upper roll and rotation of lower rolls to generate permanent plastic deformation on plate so as to roll the plate to required shape such as cylinder, taper cylinder or arc. The disadvantage of mechanical symmetrical 3-roll rolling machine is the end of plate can not be bent preliminarily.
Here are photos from CHAOLI professional China rolling machine factory.
Modèle | Épaisseur maximale | Épaisseur | largeur maximale | Diamètre du rouleau supérieur | Diamètre du rouleau inférieur | Distance centrale des rouleaux inférieurs | Principal moteur électrique | Vice-moteur électrique | Diamètre de roulement min sous pleine charge (mm) |
W11-6x1500 | 6 | 2 | 1500 | 160 | 140 | 220 | 4KW-6P | 2,2kw-4p | 250 |
W11-6x2000 | 6 | 2 | 2000 | 170 | 160 | 260 | 5.5KW-6P | 3KW-4P | 280 |
W11 + 8x2000 | 8 | 3 | 2000 | 190 | 170 | 260 | 5.5KW-6P | 3KW-4P | 300 |
W11-10x2000 | 10 | 3 | 2000 | 220 | 180 | 260 | 5.5KW-6P | 4KW-4P | 380 |
W11-12x2000 | 12 | 4 | 2000 | 240 | 180 | 280 | 7,5 kW-8p | 3KW-6P | 420 |
W11-16X2000 | 16 | 5 | 2000 | 260 | 220 | 320 | 7,5 kW-8p | 4KW-6P | 460 |
W11-20x2000 | 20 | 6 | 2000 | 280 | 240 | 360 | 11kw-8p | 5.5KW-6P | 520 |
W11-16X2500 | 16 | 5 | 2500 | 280 | 240 | 360 | 11Kw-8p | 5.5Kw-6p | 550 |
W11-25x2000 | 25 | 8 | 2000 | 340 | 260 | 430 | 15Kw-8p | 7.5Kw-6p | 600 |
W11-20x2500 | 20 | 6 | 2500 | 340 | 260 | 430 | 15Kw-8p | 7.5Kw-6p | 620 |
W11-25x2500 | 25 | 8 | 2500 | 380 | 280 | 480 | 22Kw-8p | 11Kw-6p | 650 |
W11-30x2500 | 30 | 8 | 2500 | 420 | 360 | 550 | 30Kw-8p | 15Kw-6p | 700 |
